Hoxton Press, London GB
David Chipperfield, 2018

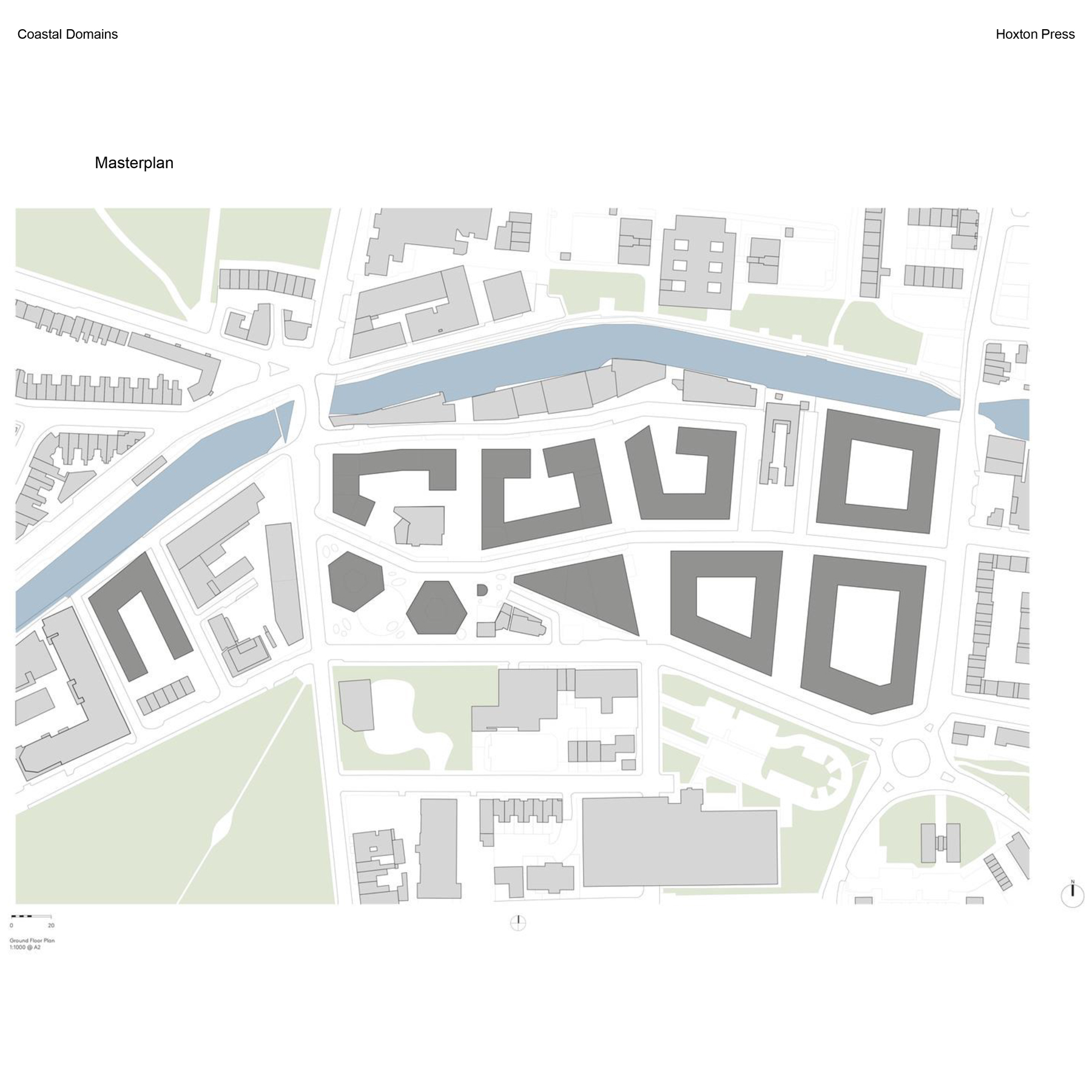

This residential project, won in competition, is located at the south-west corner of the Colville Estate, a housing development in Hackney, east London, built in the 1950s. It forms part of Hackney Council’s program of redevelopment across the borough that calls for around 2,500 new homes to be built over the coming years. Karakusevic Carson Architects was originally commissioned to develop a comprehensive masterplan, which was adopted in 2011. The two residential towers, 16 and 20 storeys respectively, form part of this masterplan and are intended for private sale to co-fund the larger redevelopment of the estate.

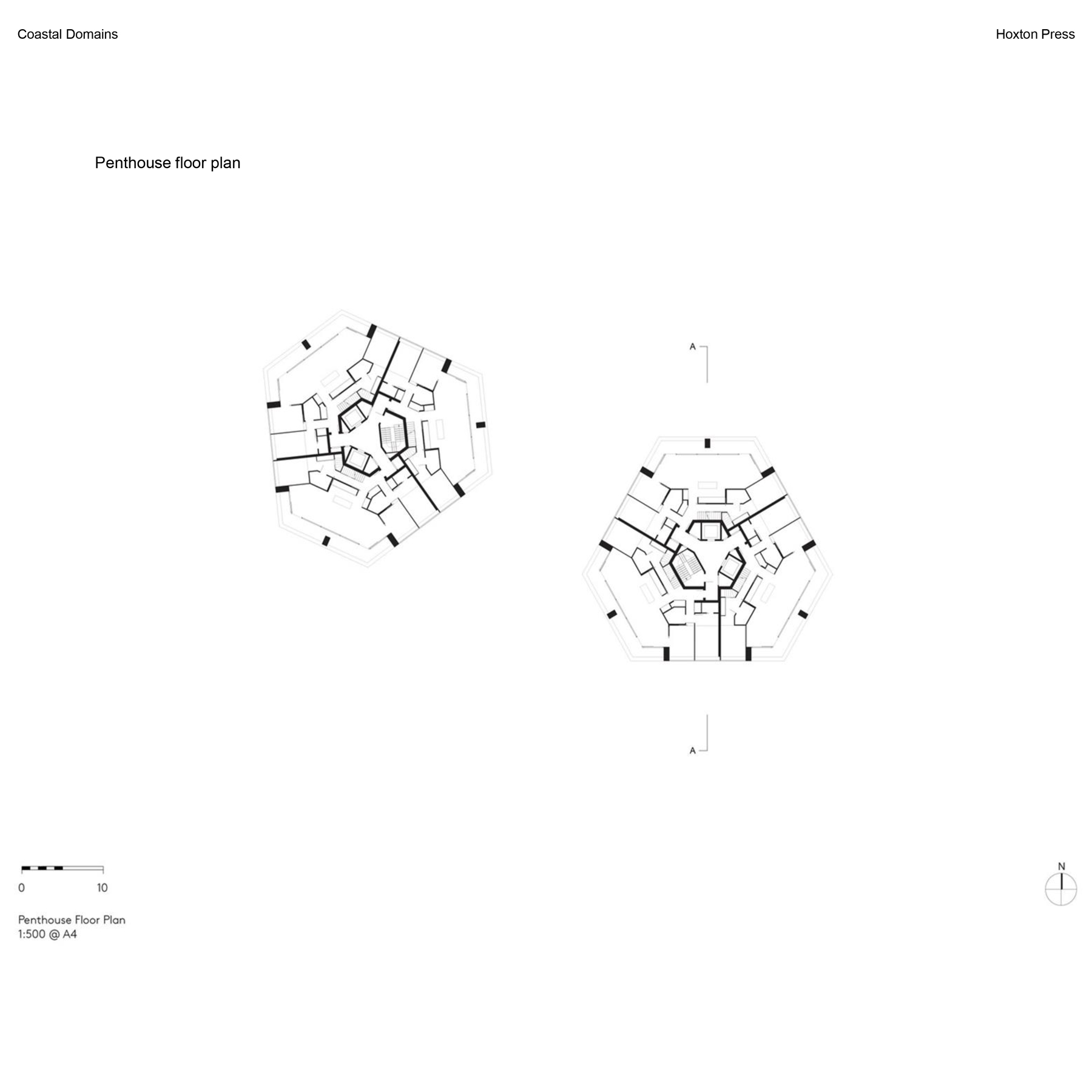

The faceted form of the towers allows them to occupy the edges of an irregular plot, opening up the wider neighborhood to Shoreditch Park. The residential floors have a concentric arrangement, with living spaces and bedrooms in the outer zone taking advantage of daylight and natural ventilation. Ancillary spaces are located deeper into the plan, with the lifts and entrances located in the central core. Balconies, connected to the living spaces, appear on alternate façades. A typical floor plan contains six apartments while the two lower levels accommodate studios and the two penthouse levels at the top have three apartments per floor. The structural frame facilitates column-free corners and each of the 198 apartments has a corner living room and balcony offering unobstructed views.
The building frame is made of in-situ concrete and the floor plates have been provided with upstands, reducing the depth of the slabs and creating generous floor-to-ceiling heights. The towers are clad with handmade bricks in different colours: blue/grey for the western tower, and red for the eastern one. At the entrance level, the brick façades turn into vaulted soffits bridging the first-floor slab and the central core.
Both towers sit on either side of a gentle hill surrounded by informal clusters of trees framing views to the park and the surrounding landscape. As the site forms a link between Shoreditch Park and the Colville neighborhood, a single surface material underlines its permeability, devoid of fixed paths or walkways. This single surface continues into the ground floor of the buildings, creating a seamless transition between exterior and interior.
Competition: 2012
Project start: 2013
Completion: 2018
Gross floor area: 19,000 m2
Floors:16 and 20 storeys
Units:198
Client: The London Borough of Hackney, Anthology
Architect: David Chipperfield Architects in collaboration with Karakusevic Carson Architects
